Single Port Earthquake Rescue Equipment Dual Output Hydraulic Pump Bjq-72/0.6

Single port hydraulic dual output pump

BJQ-72/0.6

Features:

1. The original imported Honda four-stroke GX100 gasoline engine is used as the power source, with strong power and stable performance.

2. It adopts a flat head single interface dual output structure design, which is easy to clean and can be connected to two devices at the same time.

3. The interface is designed with a flat-head shaft, which can be plugged and unplugged under pressure, with one press in place, making the operation more convenient and safer.

4. Adopting "automatic pressurization" design, no need for hydraulic valve switch, optimizing operating procedures and reducing fuel consumption.

5. External single "double speed mode" switch. After opening, the rescue efficiency of a tool can be doubled.

6. The upper-mounted super large hydraulic oil tank is designed for normal use of various large and super large hydraulic tools.

7. The frame structure is adopted on the periphery, which can avoid the collision of the host and can directly carry two persons into the rescue scene.

Parameters:

Rated working pressure: ≥72Mpa

Working speed: 3400±150rpm

Engine power: 2.1KW/3600(r/min)

Hydraulic oil tank volume: 4.5L

Gasoline fuel tank capacity: 0.77L

High pressure/double speed mode ---

---flow rate: 0.6/1.2L/min

Low pressure/double speed mode flow: 2.4/4.5L/min

Weight: ≤25kg

Dimensions (length*width*height) : 400*305*460mm

2 sets of 5m flat-head axial single-tube single-port hoses are standard (red and blue color)

earthquake rescue dual output hydraulic pump

single port dual output hydraulic pump

disaster rescue dual output hydraulic pump

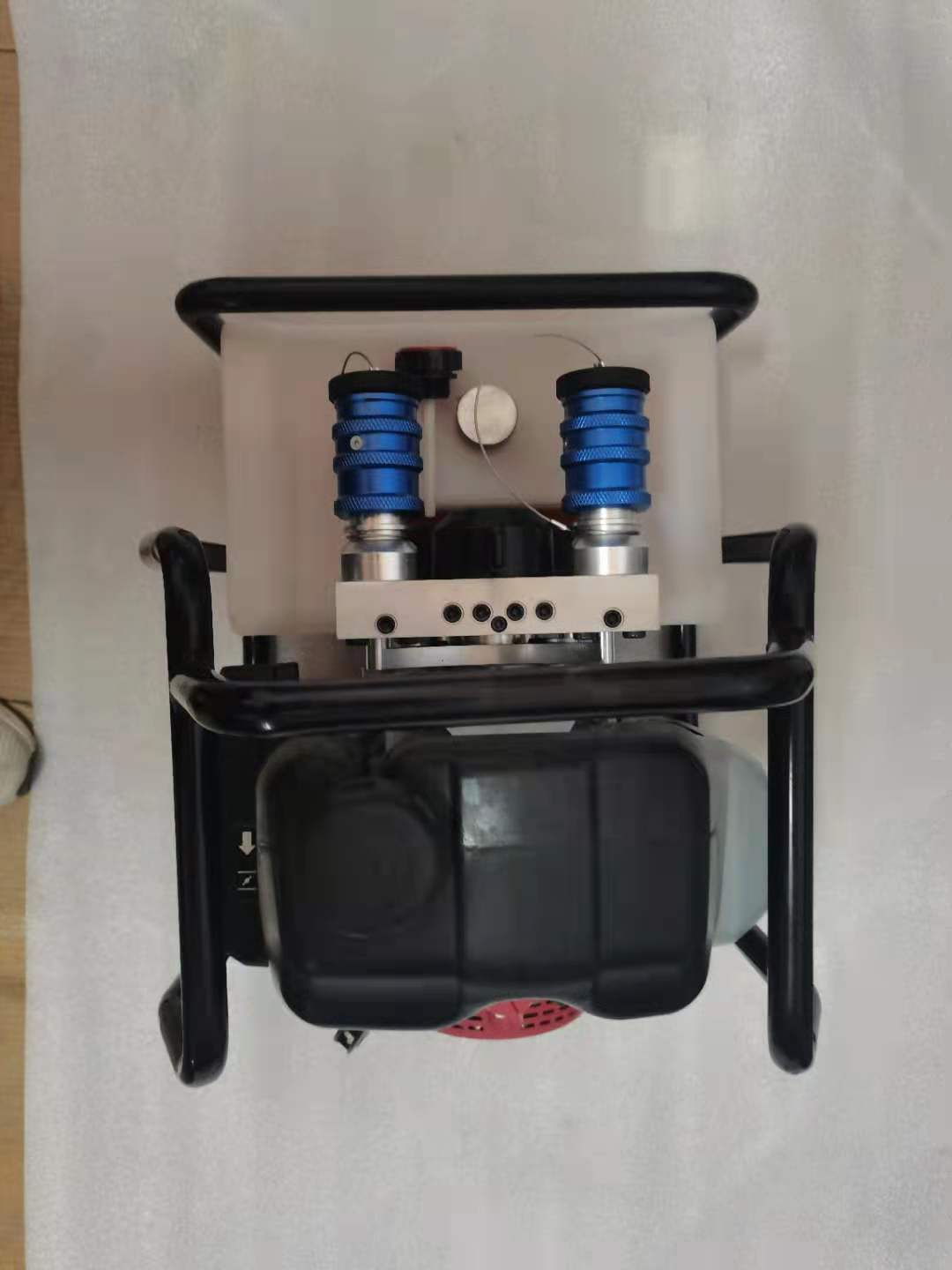

Single Port Earthquake Rescue Equipment Dual Output Hydraulic Pump Bjq-72/0.6 Images
